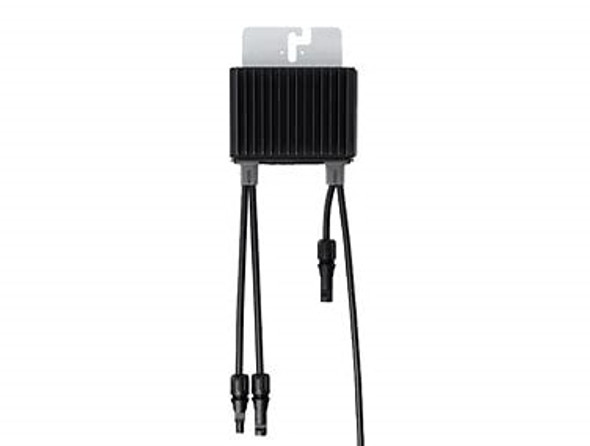

Solar Power Optimizer

1.06 KGS
Calculated at Checkout
  • Solar Power Optimizer
  • Solar Power Optimizer
  • Solar Power Optimizer
  • Solar Power Optimizer
Frequently bought together:


Solar Power Optimizer is designed to superior efficiency of 99.5%. It mitigates all types of module mismatch losses from manufacturing tolerance to partial shading. It has flexible system design for maximum space utilization. The power optimizer is easy and fast to install with a single bolt. It comes with module-level voltage shutdown for installer and firefighter safety.



Input: 505 W

Max input voltage: 83 VDC

Dimensions: 12.9 x 16.2 x 59 cm

Weight (including cables): 1.064 kg

Input connector: MC4

Operating temperature range: -40 to +85 C / -40 to +185 F

Output during operation (Power optimizer connected to operating inverter)

Max output current: 15 A (DC)

Max output voltage: 80 VDC

Output during standby (Power optimizer disconnected from inverter/inverter off)

Output voltage: 1 VDC
